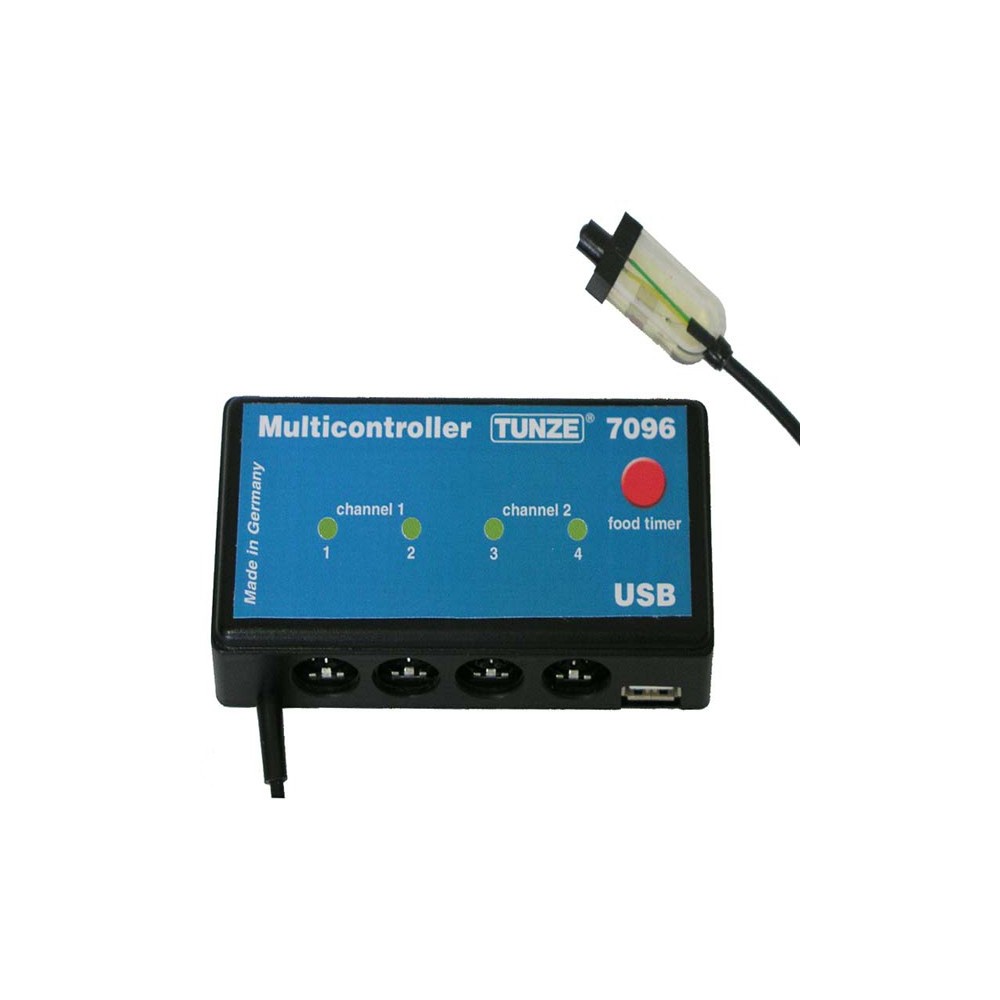

Tunze 7096 Multicontroller.

Tunze Controllers are used in combination with one or more Tunze Electronic Pumps, see list below, and will control the flow rate as well as the frequency of flow rate change for the pumps connected to it. The type of parameters that can be adjusted depends on the model of Controller chosen.

The Tunze 7096 Multicontroller can be programmed and adjusted by means of a home computer. It is connected to the computer via a USB cable which is supplied. The controller has been fitted with an 8-bit, high-performance, micro-processor and has a memory module which keeps the settings stored even in case of a power failure. Whilst being programmed by the computer, the Multicontroller does not need to be connected to the pumps in the aquarium. After adjustment by and saving on the computer, the updated data remain saved in the memory of the Multicontroller.

TUNZE® Multicontroller 7096 combines the functions of the older Multicontroller 7095 and Wavecontroller 6091, as well as some additional new control options. It simulates various marine flow conditions in the aquarium and has been fitted with an especially bright LED moonlight.

The combination of Tunze Electronic Pumps along with the Tunze 7096 Multicontroller make for an unbeatable team – as they can reproduce real reef currents in your reef aquarium. The following flow patterns can be produced in the aquarium very easily:

Wave simulation (Pulse only)
By setting the maximum and minimum outputs as well as the pulse duration, high and low water velocities can be produced generating a natural wash of waves under a one-metre water column.

Simulation of tidal currents (Interval)
The pump channels are switched on or off alternately. The water flows through the reef from both sides at an adjustable switching time from 1 minute up to 12 hours.

Sequential pump circuit (Sequential)
The Tunze pumps are started sequentially, which permits the generation of a swelling current.

Random flow (Sequential)
Random flow is generated by wave simulation and sequential pump operation. For quite a number of special reef zones (surf) this combination may produce an interesting water movement.

Oscillating currents with NanoWavebox, Wavebox or Tunze pumps
In Multicontroller 7096, the pump channels can be used as a Wavecontroller for the direct or alternating operation of Nano Wavebox / Wavebox or the Turbelle® pumps can be used. This function includes an automatic search of the resonance frequency, which can be combined with wash of waves or high and low tide simulation.

Feeding operation (Foodtimer)
In all Tunze Controllers, the pumps can be stopped completely by the push of a button to enable feeding. After about one to fifteen minutes (adjustable), a pump restart is carried out automatically.

Moon-phase simulation (Moonlight)
Multicontroller 7096 contains a moon-phase simulation function with LED light and adjustable 29-day moon phase.

Operation in night mode (Night mode)
In all Tunze controllers, a photo-electric cell is used to reduce the performance of the Tunze pumps at night. As on a reef, small animals and plankton can rise in the aquarium completing the natural cycle of diurnal and nocturnal animals occupying the habitat.

Storm for de-sedimentation (Storm cycle)
Like in nature, sediment should be removed from a reef aquarium in regular intervals. This function can be programmed in Multicontroller 7096 to be carried out automatically; the pumps connected are controlled on the basis of an efficient and precise rhythm.

Contents:
Multicontroller 7096 with photo-electric cell, moonlight, holding device and 5 metre USB cable, four pump connection cables, CD with Windows compatible control program. Suitable for MS-Windows 98, 2000, XP, Windows 7 and Vista.

Specifications:
Controls up to four pumps as supplied, two pumps per channel. Can control more pumps if optional Y Adaptor is used.

Tunze pumps suitable for use with 7096 Multicontroller:
Tunze Stream 6000, 6100, 6200 and 6300.
Tunze Stream ‘2’ 6105, 6155, 6205, 6255 and 6305.
Tunze Nanostream 6055 and 6095.
Tunze e-jet 5005.
Tunze Wavebox 6212, 6215 and 6206.

Suitable for: freshwater or marine aquaria.

The product is supplied in the original packaging, is the latest UK version & is supplied with all the Tunze manuals and guarantees.
